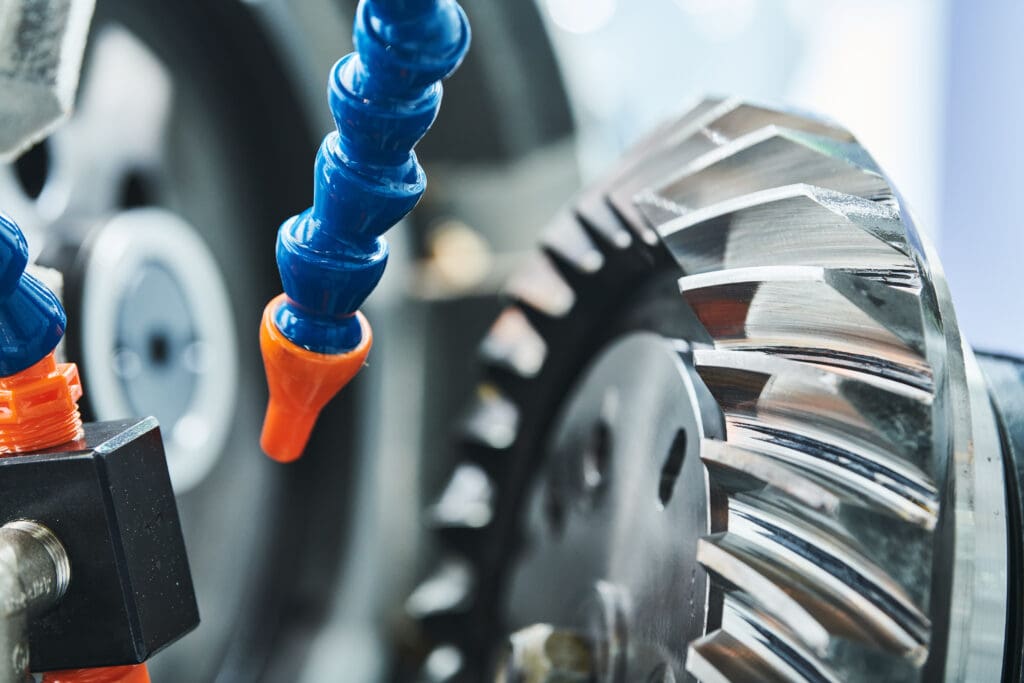

Close-up of a metal gear being machined, with blue and orange coolant hoses directing fluid onto the gear’s shiny, angular teeth. The background is blurred, emphasizing the precision of the industrial process.

Gear Grinding

At Llewellin’s Gears, we deliver high-precision gear grinding services for applications that demand exceptional accuracy, surface finish, and quiet operation. Whether you’re in aerospace, robotics, or heavy industry, we support your requirements with gear grinding solutions that ensure smooth transmission, tight tolerances, and extended gear life.

A close-up of an industrial CNC machine grinding a large metal gear with sharp angled teeth. Blue coolant tubes and orange guards surround the rotating gear on the workbench.

Gear Grinding Capabilities

Helical
Spur
Wormshafts

Materials

Case-Hardened Steels
Nitride Steels
Tool Steels
Other heat-treated materials

Capacity

Max Gear Diameter: Up to Ø800mm
Max Gear Face Width: Up to 165mm
Module Gear Range: 0.5 to 10 Mod
Max Worm Diameter: Up to Ø300mm
Max Worm Length: Up to 915mm
Module Worm Range: 85 to 20 Mod

Applications

High-Precision Gearboxes
Automotive Transmission Systems
Aerospace & Defence Mechanisms
Robotics & Automation Equipment
Medical & Precision Instruments
Wind Turbines & Power Equipment

A close-up of a gear shaft being ground by a rotating abrasive wheel, with bright orange sparks flying from the point of contact.

Benefits

Consistently Tight Tolerances & Exceptional Surface Finishes.
Enhanced Wear Resistance & Gear Efficiency.
Quiet Operation, Ideal for Noise-Sensitive Environments.
Fully Integrated Grinding of External Profiles.
Certified Quality Backed by ISO 9001:2015.

Close-up view of interlocking metal gears with shiny, precisely machined teeth, highlighted by cool blue lighting.

Quality Assurance

Our gear grinding services are backed by a rigorous ISO 9001:2015 quality system. Every gear is inspected using gear measuring centres, precision gauges, and detailed dimensional checks to ensure compliance with exacting specification.
