Gear Cutting

At Llewellin’s Gears, we provide precision gear cutting services—including internal helical gears and worm shafts—serving industries that demand tight tolerances, extended service life, and smooth power transmission. Our gear cutting machinery supports low-volume prototypes and small to medium-volume production runs.

Close-up of a metal gear being cut by a milling machine with coolant fluid being applied, showing detailed machining and metalworking process.

Gear Cutting Capabilities

Spur Gears
Helical Gears
Internal Helical Gears
Double Helical Gears
Worm Gears (External Only)
Worm Shafts
Bevel Gears
Internal Gears
Planetary Gears
Sprockets

Materials

Carbon & Alloy Steels
Stainless Steels
Aluminium
Brass & Bronze
Plastics (e.g. POM, Nylon)
Pre-Hardened or Heat-Treated Materials

Capacity

Spur Gear Capacity: Up to Ø2640mm
Internal Spur Gear Capacity: Up to Ø1300mm
Helical Gear Capacity: Up to Ø2135mm
Internal Helical Gear Capacity: Up to Ø1041mm
Double Helical Gear Capacity: Up to Ø1320mm
Worm Wheel Capacity: Up to Ø1830mm
Worm Shaft Capacity: Up to Ø300mm
Bevel Gear Capacity: Up to Ø610mm
Sprocket Capacity: Up to Ø2640mm

Methods

Hobbing – For spur, helical, double helical gears, and worm shafts.

Shaping – Suitable for internal profiles and clearance-critical components.

Planing – Precision method for small batches or custom geometries.

Applications

Gearboxes & Transmissions
Worm Gear Drives
Lifting & Hoisting Systems
Robotics & Automation Equipment
Pumps & Conveyors
Power Tools & Precision Drives

Close-up of metal gears with yellow lubricant oil being poured over them, highlighting the mechanical parts and lubrication process.

Benefits

High Dimensional Accuracy & Repeatability.
Quiet Operation & Smooth Engagement for Helical & Worm Gears.
Internal & External Helical Gear Capabilities.
Long Shaft Cutting for Worm Assemblies.
Fast Turnaround & Flexible Order Quantities.

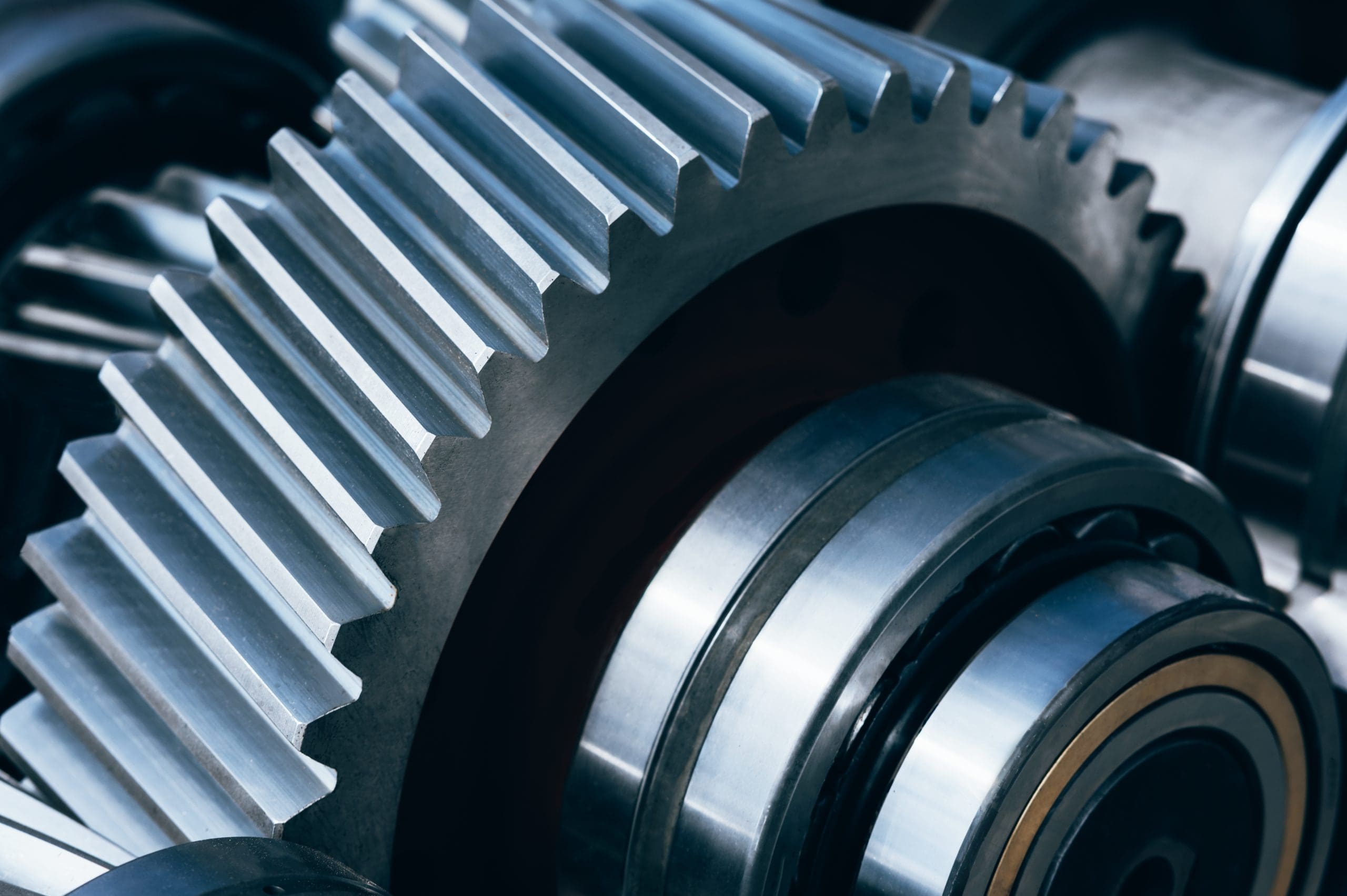

Close-up view of shiny metal gears and bearings in a mechanical system, highlighting the precise, angled teeth and polished surfaces of the machinery components.

Quality Assurance

All gear cutting is performed under our ISO 9001:2015 certified quality system. Every part undergoes strict dimensional verification using pitch micrometres, gear gauges, and detailed measurement inspection.
