Broaching

At Llewellin’s Gears, we offer precision internal broaching services ideal for producing high-accuracy forms such as keyways, splines, and custom profiles. Our broaching operations are engineered for consistency, speed, and tight tolerance control — helping you achieve production efficiency without compromising on quality.

Close-up of multiple metal gears arranged in rows, with a shallow depth of field focusing on the central gears and blurring those in the background.

Broaching Capabilities

Keyways
Splines
Hexagonal & Square Holes
Round-to-Shape Transitions

Materials

Mild & Stainless Steels
Aluminium, Brass & Bronze
Titanium & Specialty Alloys

Broach Tooling

In-House Tool Setup & Calibration.
Custom Broach Tool Design to Customer’s Drawing.
Large Stock of In-House Broaches.

Close-up of three parallel metal machine parts with intricate grooves and ridges, set against a black background. The surfaces are shiny and reflect light, highlighting their detailed, industrial design.

Why Choose Broaching?

Speed & Efficiency: High-speed material removal ideal for production volumes.
Accuracy: Achieve consistent tight tolerances.
Repeatability: Perfect for components requiring uniform features across batches.
Surface Finish: Excellent surface finishes reduce the need for secondary operations.

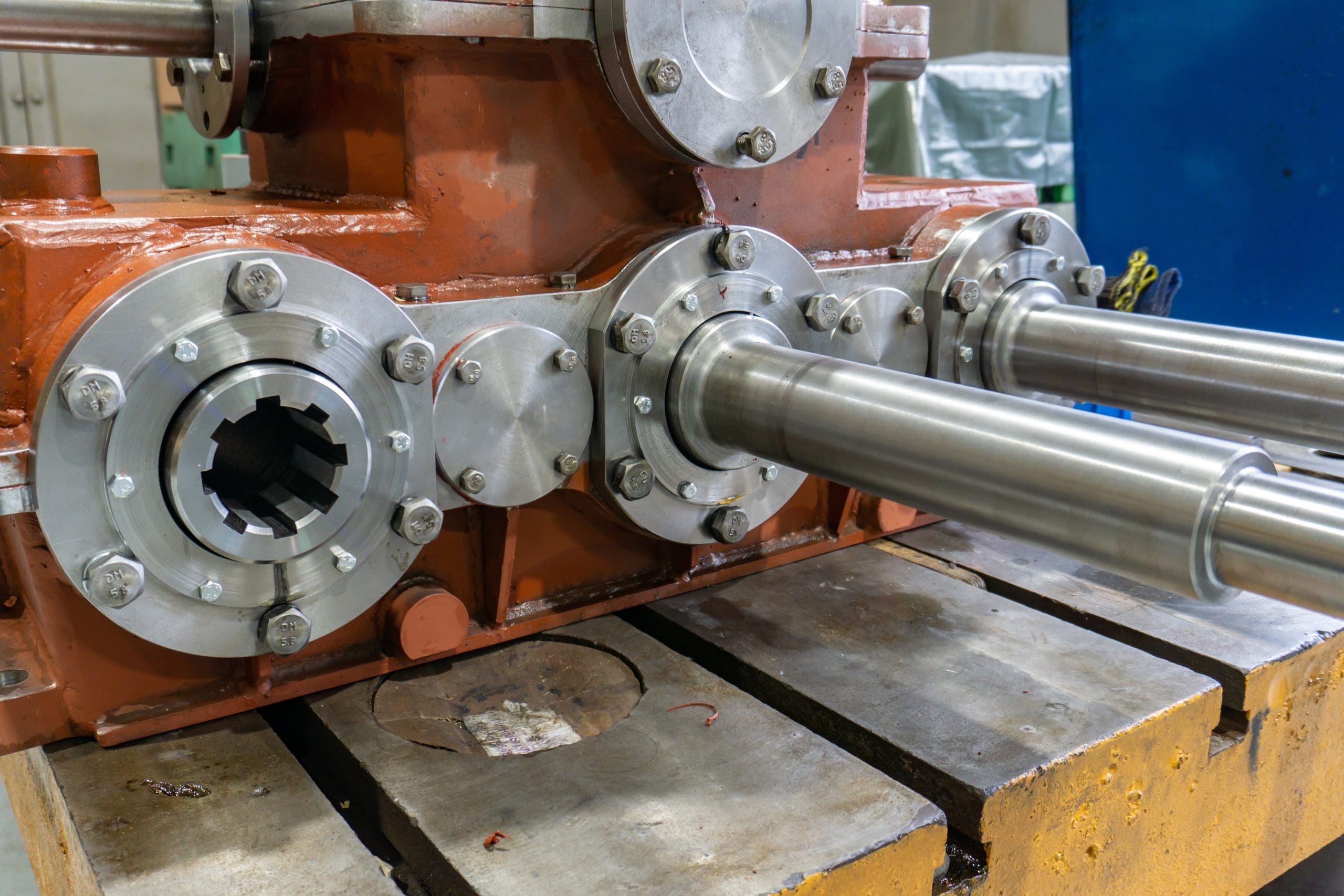

Close-up of a heavy-duty industrial gearbox with two large steel shafts extending outward, mounted on a yellow metal base in a workshop setting. The gearbox has a rust-orange and metallic finish.

Quality Assurance

All components undergo rigorous inspection using precision gauges and documented processes. Our broaching services operate within a robust ISO 9001:2015-compliant quality management system.
